Haitai’s heat-stabilized PA66 cable ties support a continuous operating temperature upper limit of 130°C, with an installation range of −20°C to +85°C. For automotive wiring, electrical equipment and industrial bulk or OEM orders, specify width × length, bundle diameter, loop tensile strength and packaging to select the right PA66HS tie.

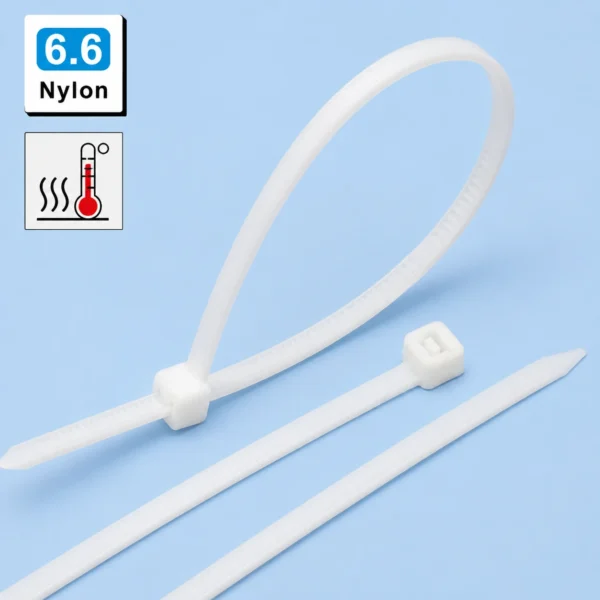

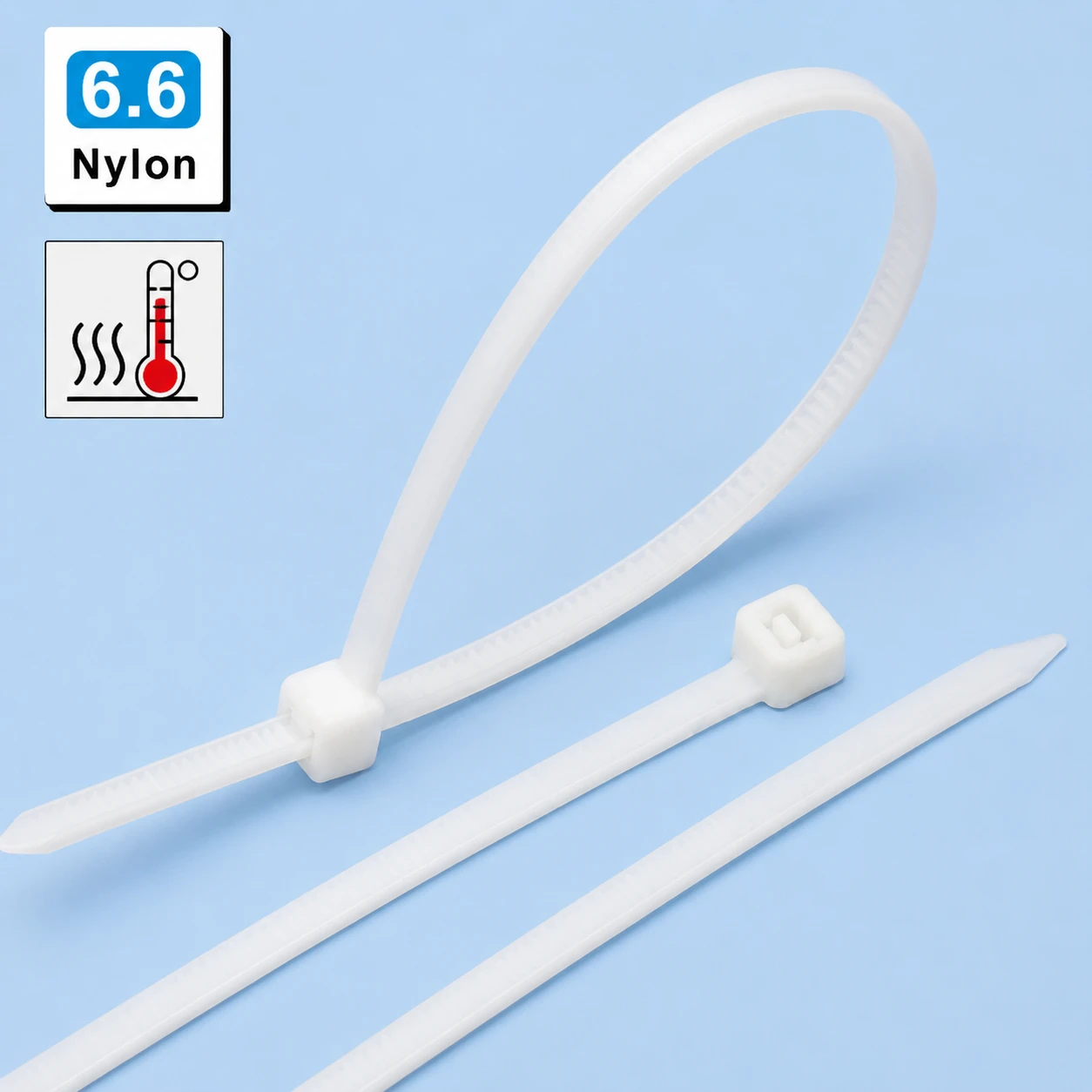

Haitai heat-stabilized cable ties use PA66 with thermal stabilizers for wire harnesses and industrial cable bundling, with a continuous operating temperature upper limit of 130°C. The installation temperature range is −20°C to +85°C; installation temperature and in-service temperature are different specifications.
PA66HS identifies heat-stabilized polyamide 66, not an automatic UV-resistance or flame-retardancy rating. Specify sunlight exposure and any required fire classification separately when selecting the compound.
For bulk or OEM orders, provide strap width × length, bundle diameter in mm and required loop tensile strength in N. Our heat-resistant cable tie selection guide explains how to match temperature, exposure duration and the installation location.
Thermal stabilizers help the tie maintain strength and flexibility in high temperature use.
Continuous operating temperature upper limit: 130°C. Installation temperature range: −20°C to +85°C.
The molded pawl and serrated strap provide stable fastening for wire and cable bundles.
Specification Reference
Use the temperature limits below to screen the application, then confirm the selected size, bundle diameter and loop tensile strength. The four catalog examples are a starting point for quotation, not a complete size range or a single tensile rating for every model.
| Parameter | Specification / purchasing requirement |
|---|---|
| Material | Heat-stabilized PA66 (PA66HS); confirm the resin grade for the selected order. |
| Continuous operating temperature | Upper limit: 130°C. |
| Installation temperature | −20°C to +85°C. |
| Locking structure | One-piece, self-locking design with a serrated strap. |
| Loop tensile strength | Confirm in N for the selected model and test conditions; not a safe working-load rating. |
| Bundle diameter | Provide the minimum and maximum bundle diameter in mm. |
| Color and exposure | Specify color, sunlight exposure and contact with oils or chemicals; heat stabilization alone is not a UV rating. |
| Packaging and documents | Confirm pcs/bag, bulk or OEM packaging, dimensional drawing and model-specific test or certification requirements. |
| Catalog selection | Width | Length | Packaging option |
|---|---|---|---|
| Mini PA66HS | 2.5 mm | 100 mm | 100 pcs/bag or bulk |
| Intermediate PA66HS | 3.6 mm | 150–200 mm | 100 pcs/bag or bulk |
| Standard PA66HS | 4.8 mm | 200–300 mm | 100 pcs/bag or bulk |
| Long / custom PA66HS | Confirm with quotation | Existing catalog example: up to 370 mm; request other lengths | 50 pcs/bag or bulk |
Confirm the exact width × length combination and packaging in the quotation before ordering. See the cable tie size chart for dimensional selection; do not transfer a standard PA66 model’s tensile or temperature rating to a PA66HS version without confirmation.
Applications

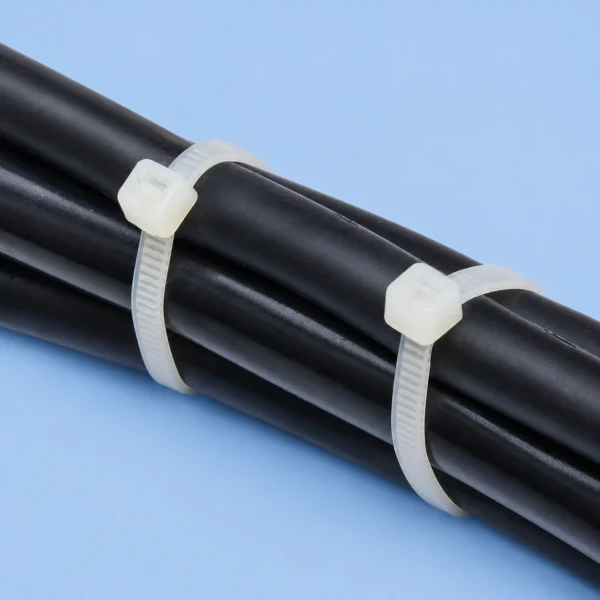

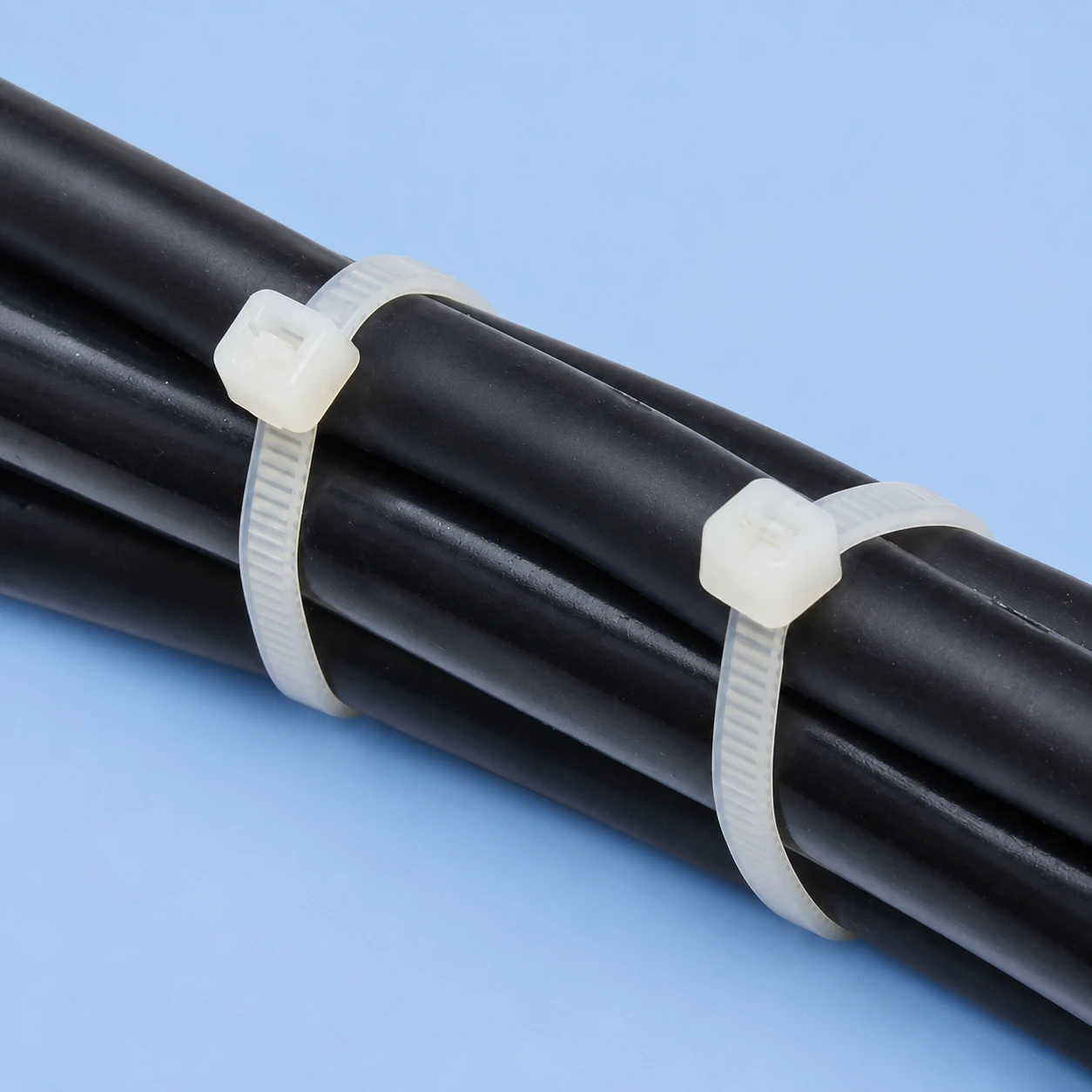

Wire Harness Fastening
PA66HS cable ties can be specified for wire harness locations within the 130°C continuous operating upper limit. For engine-compartment cable routing, assess temperature at the fixing point, vibration and chemical exposure before approving the selected model.

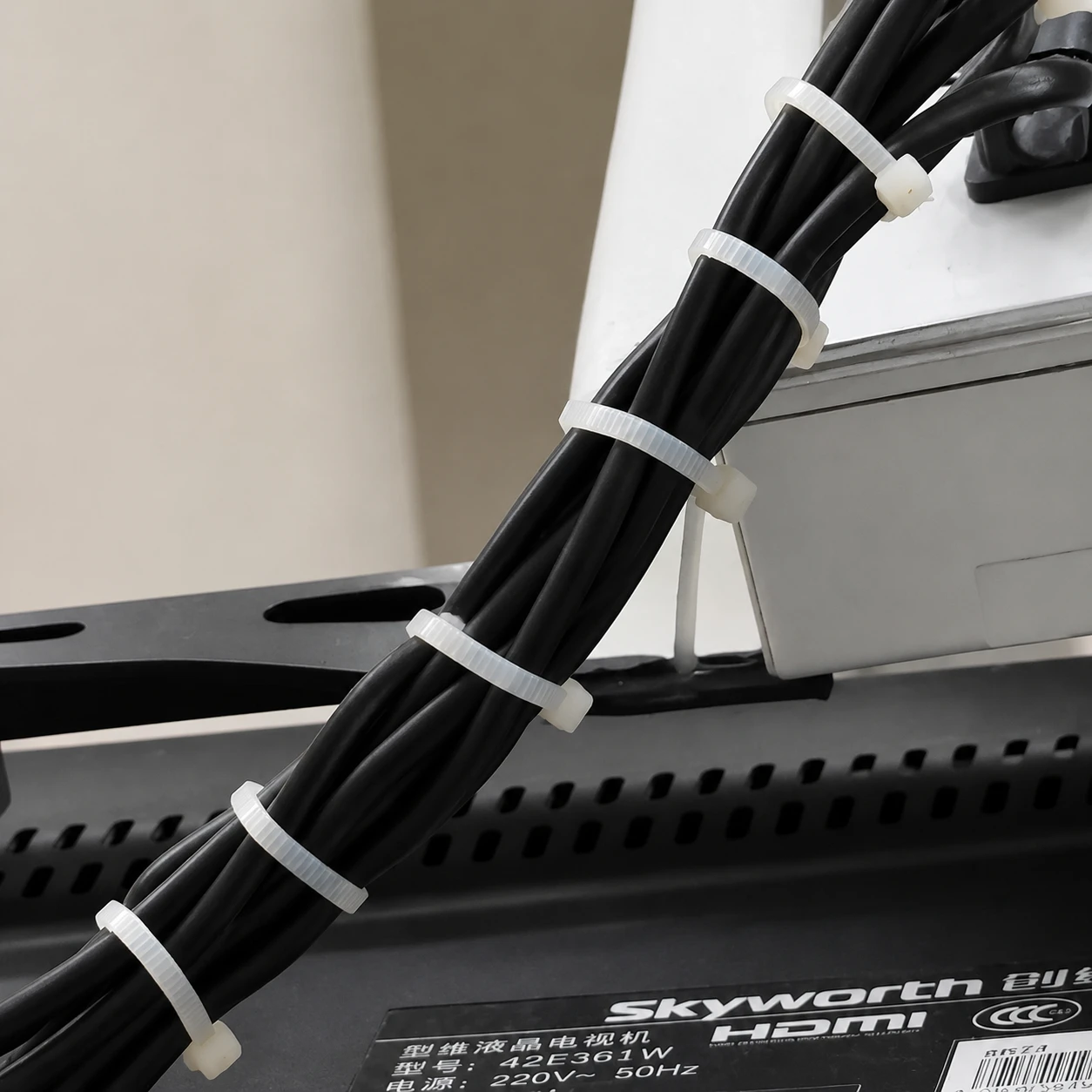

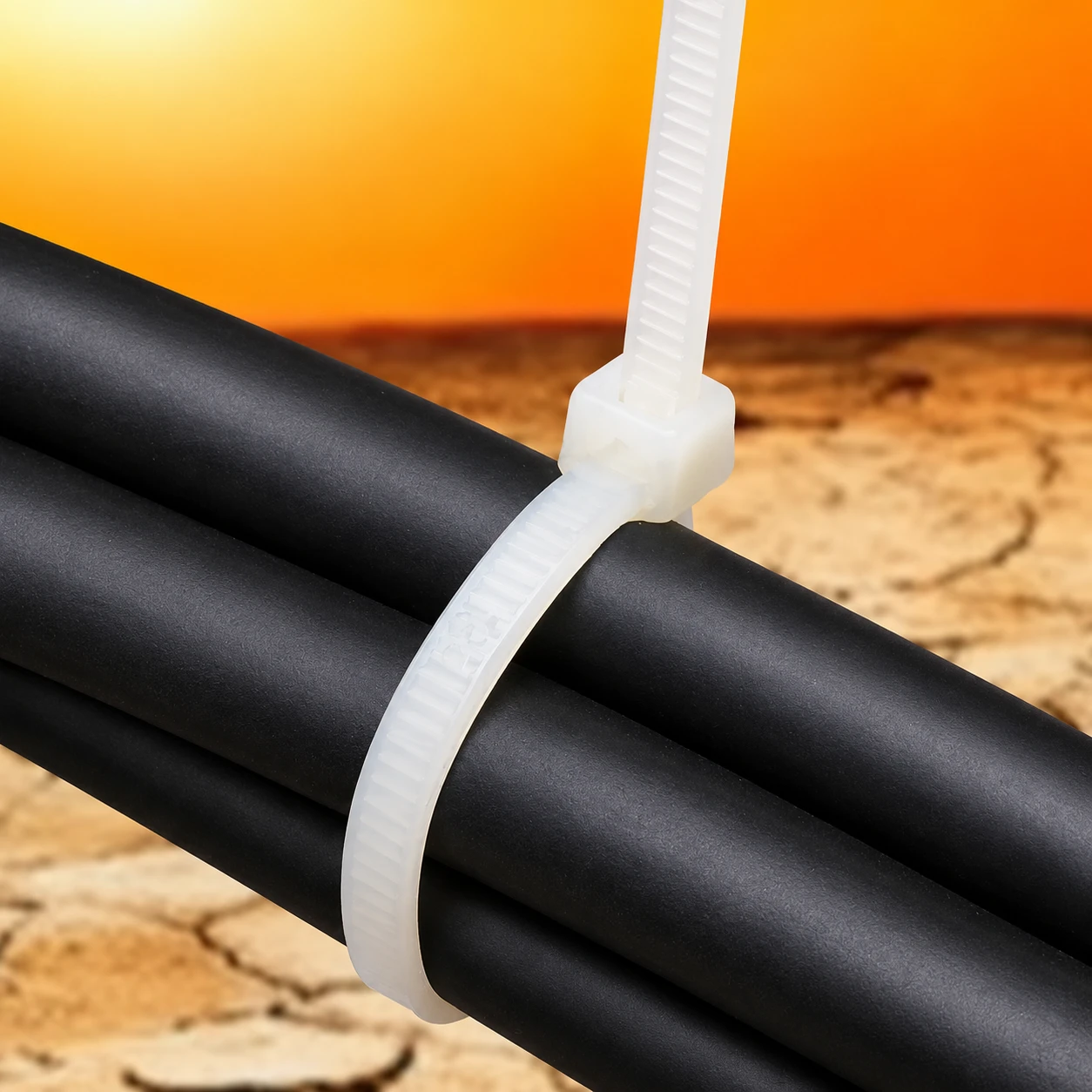

High Temperature Cable Routing
Install this heat-stabilized PA66 tie within −20°C to +85°C for equipment, machinery and electrical cable routing. Keep the bundle clear of moving parts and hot surfaces, and confirm the required strap size and tensile strength for the fastening point.
Haitai’s heat-stabilized PA66 cable ties have a continuous operating temperature upper limit of 130°C and an installation temperature range of −20°C to +85°C. A short-term peak above 130°C is not specified here and should be assessed separately.
PA66HS is heat-stabilized polyamide 66 containing thermal stabilizers. Heat stabilization does not automatically establish UV resistance; specify sunlight exposure and confirm the selected compound separately.
Provide strap width × length and the minimum and maximum bundle diameter in mm, then confirm the selected model’s loop tensile strength in N. Request the conditioning and test temperature, because loop tensile strength is not a safe working-load rating.
Evaluate the temperature at the fixing point against the 130°C continuous operating upper limit, together with vibration, chemical exposure and routing clearance. Suitability must be checked for the selected model and position, rather than assumed for every engine or cabinet location.
The catalog examples include 100 pcs/bag, selected 50 pcs/bag and bulk options; confirm the pack quantity for each size. For OEM orders, provide quantities by size and color, labels, carton marks and any private-label artwork for quotation and sample approval.
Request the selected PA66HS model’s dimensional drawing, resin-grade information and relevant test data, including temperature and conditioning where applicable. Certification claims must identify the covered models and scope; a material classification alone does not establish finished-product certification.
Request a heat-stabilized cable tie quotation with size, quantity, temperature profile and packaging requirements.
Packaging & OEM
Haitai can support different packaging requirements including bulk packing, standard poly bags, retail bags, labels, carton marks, and selected private label requirements. Please share your target market, bag quantity, carton size, and annual purchasing plan for confirmation.
Request A Quote
