Haitai manufactures 2.5 mm PA66 mini cable ties in 10 lengths from 60 to 380 mm for wholesale, OEM and compact wire-management applications. The series is specified at 80 N (18 lbf) minimum loop tensile strength, uses INVISTA U4820L PA66, and is designed for installation from -20°C to +85°C. All listed models use the HTS-2.5X[length] format and standard 100 pcs/bag packaging; confirm color, bundle diameter, required documents and packaging artwork in the purchase specification.

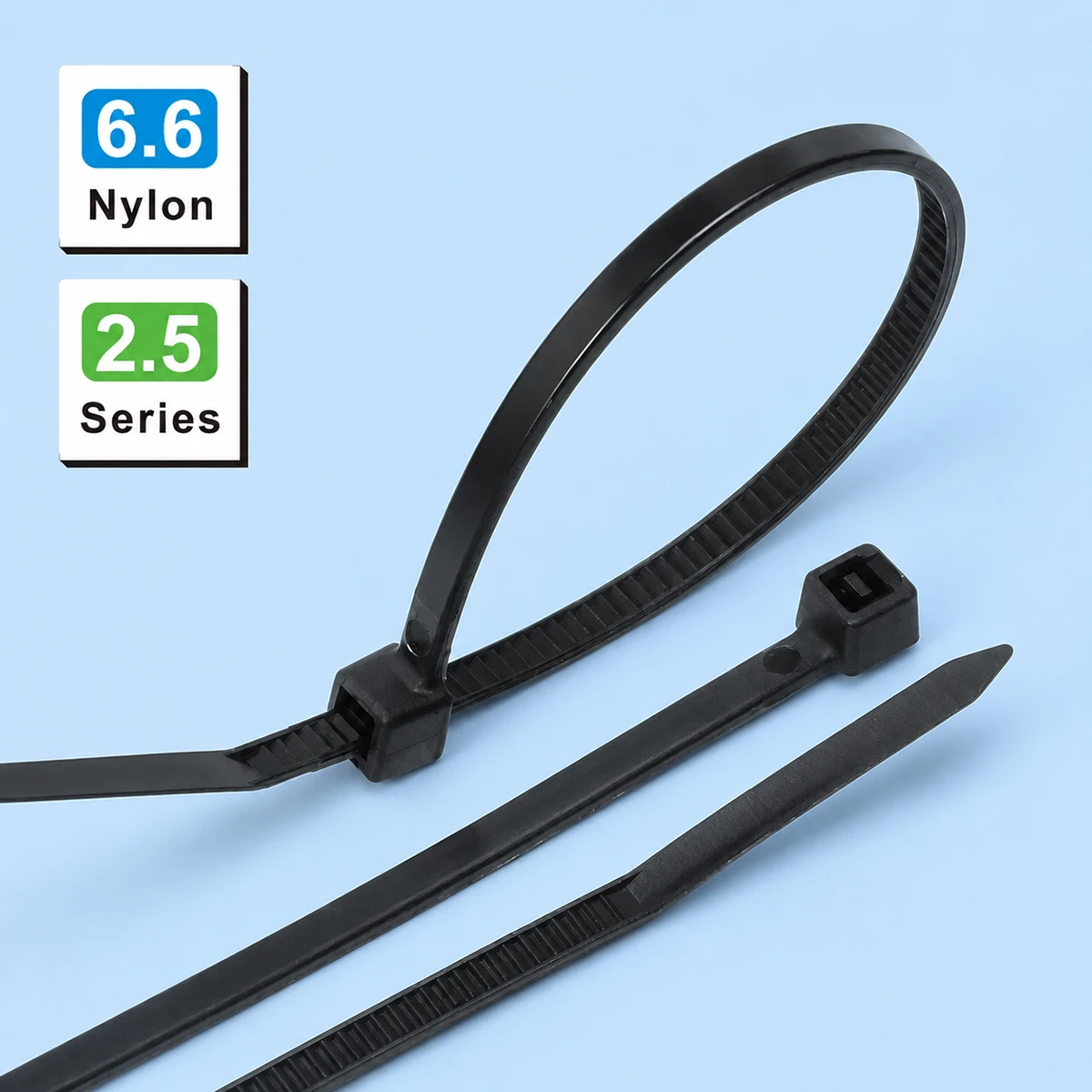

Material: Polyamide 6.6 (PA66)
Raw material: INVISTA U4820L
Installation temperature: -20°C to +85°C
Minimum loop tensile strength: 80 N (18 lbf class)
Packaging: 100 pcs/bag
Product Details
Haitai manufactures 2.5 mm PA66 mini cable ties in 10 lengths from 60 to 380 mm for wholesale, OEM and compact wire-management applications. The series uses INVISTA U4820L PA66, is specified at 80 N (18 lbf commercial class) minimum loop tensile strength, and has a confirmed installation range of -20°C to +85°C.

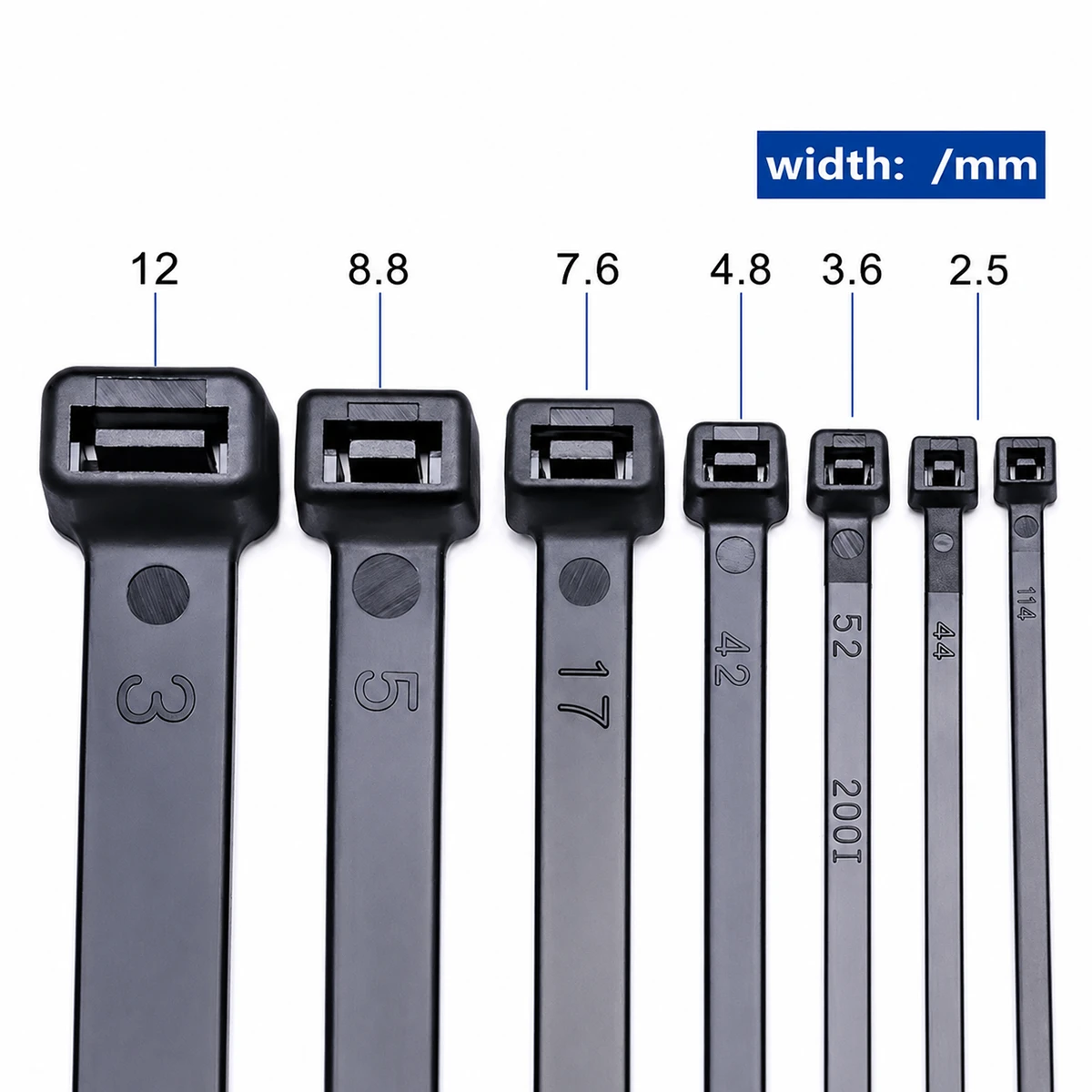

The 2.5 mm width is intended for electronics, appliance wiring, small harnesses, control cabinets, office cables, packaging and other light-duty applications where installation space is limited. The listed family carries a minimum loop tensile strength of 80 N.
Confirm the HTS-2.5X model, maximum bundle diameter, color, quantity, required documents and packaging artwork. All 10 listed models use 100 pcs/bag as the standard reference.
Specification Reference
Choose by maximum bundle diameter rather than strap length alone. The 10 confirmed models cover lengths from 60 to 380 mm and listed maximum bundle diameters from 11 to 110 mm.
| Model | Width × length | Max. bundle diameter | Min. loop tensile strength | Package |
|---|---|---|---|---|
| HTS-2.5X60 | 2.5 × 60 mm / 0.098 × 2.36 in | 11 mm / 0.43 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X80 | 2.5 × 80 mm / 0.098 × 3.15 in | 16 mm / 0.63 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X100 | 2.5 × 100 mm / 0.098 × 3.94 in | 22 mm / 0.87 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X120 | 2.5 × 120 mm / 0.098 × 4.72 in | 30 mm / 1.18 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X150 | 2.5 × 150 mm / 0.098 × 5.91 in | 35 mm / 1.38 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X160 | 2.5 × 160 mm / 0.098 × 6.30 in | 39.8 mm / 1.57 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X200 | 2.5 × 200 mm / 0.098 × 7.87 in | 52.5 mm / 2.07 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X260 | 2.5 × 260 mm / 0.098 × 10.24 in | 73 mm / 2.87 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X300 | 2.5 × 300 mm / 0.098 × 11.81 in | 84 mm / 3.31 in | 80 N / 18 lbf | 100 pcs/bag |
| HTS-2.5X380 | 2.5 × 380 mm / 0.098 × 14.96 in | 110 mm / 4.33 in | 80 N / 18 lbf | 100 pcs/bag |
Selection note: The tensile value is not a safe working-load or lifting rating. Confirm the selected model, application and test conditions with the order.
There are 10 listed lengths from 60 to 380 mm. Maximum bundle diameters range from 11 to 110 mm.
The format is HTS-2.5X[length]. For example, 2.5 × 200 mm is HTS-2.5X200.
The published minimum loop tensile strength is 80 N, in the 18 lbf commercial class. It is not a lifting rating.
The listed material is INVISTA U4820L PA66. The confirmed installation range is -20°C to +85°C.

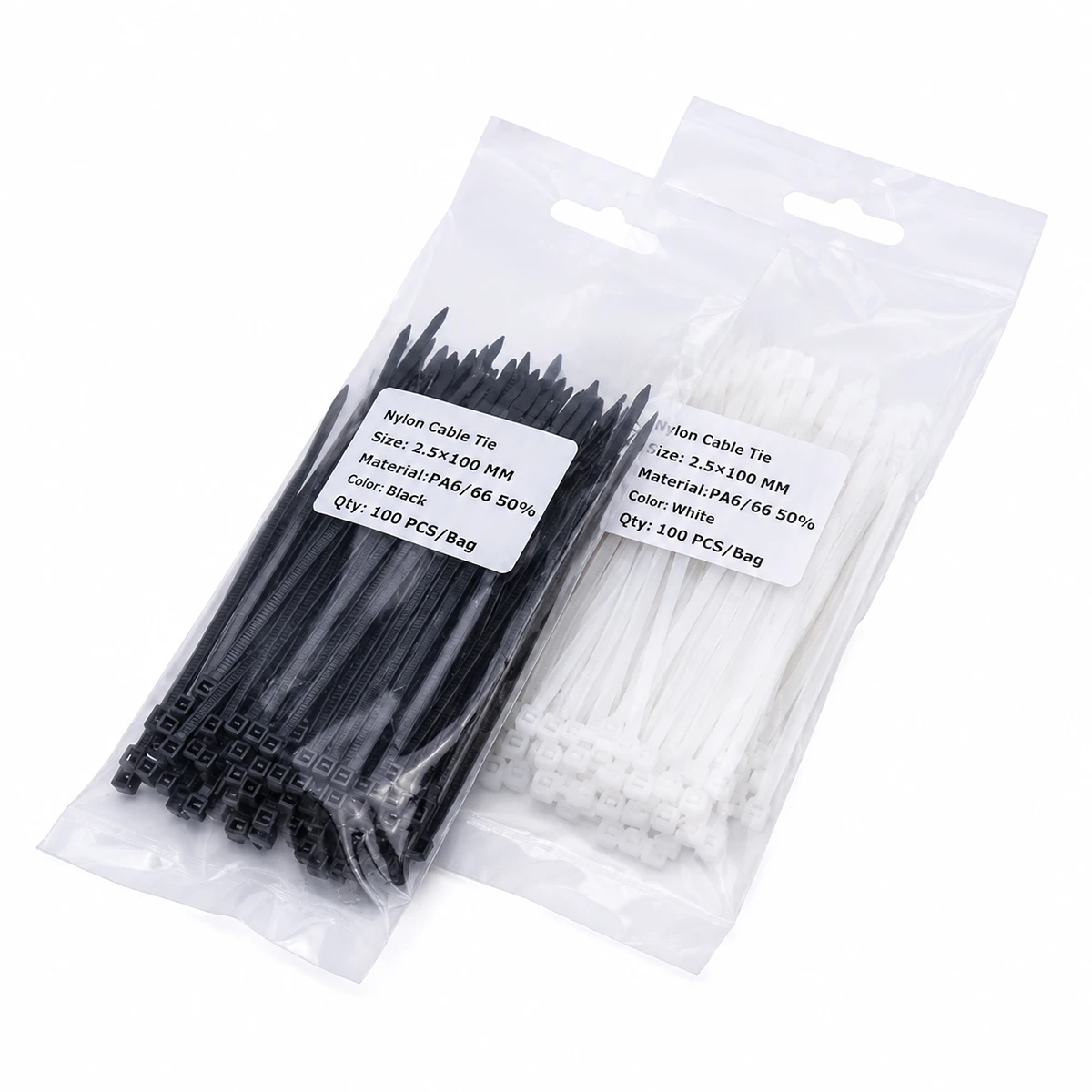

All 10 listed models use 100 pcs/bag as the standard reference. OEM labels, barcodes, retail bags and carton marks can be confirmed separately.
Send the model or size, bundle diameter, color, quantity, application environment, required documents, packaging and destination.
Applications

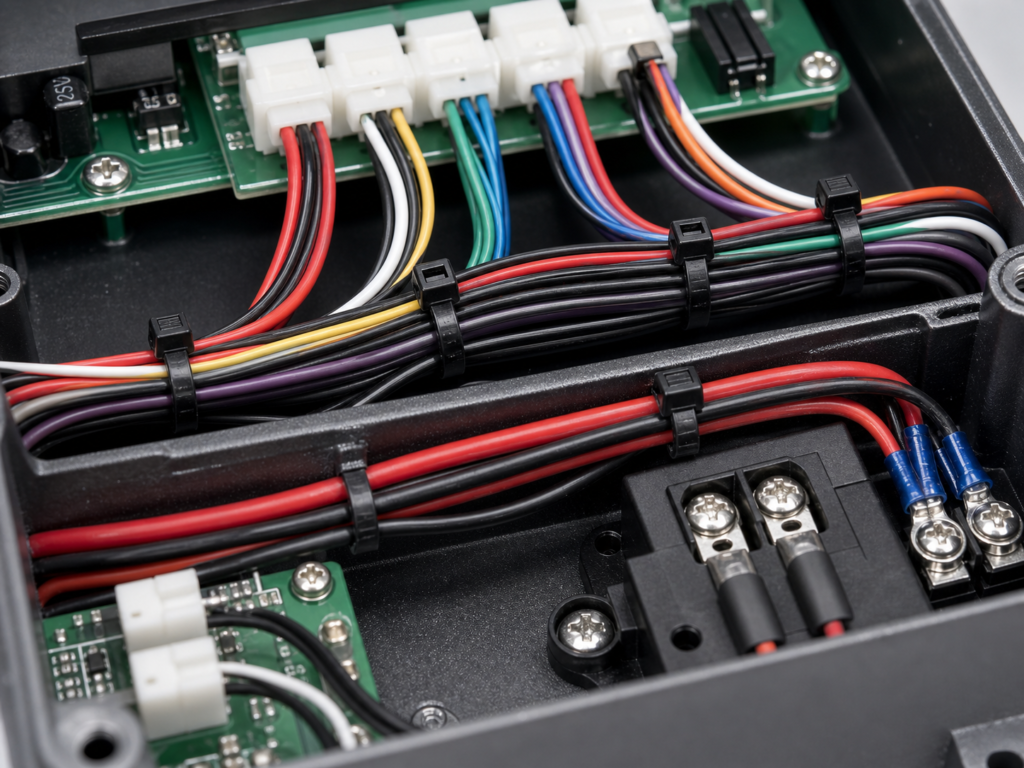

Electronics & Small Wiring
Used for small wire bundling, electronics assembly, compact cable routing, and component fastening.

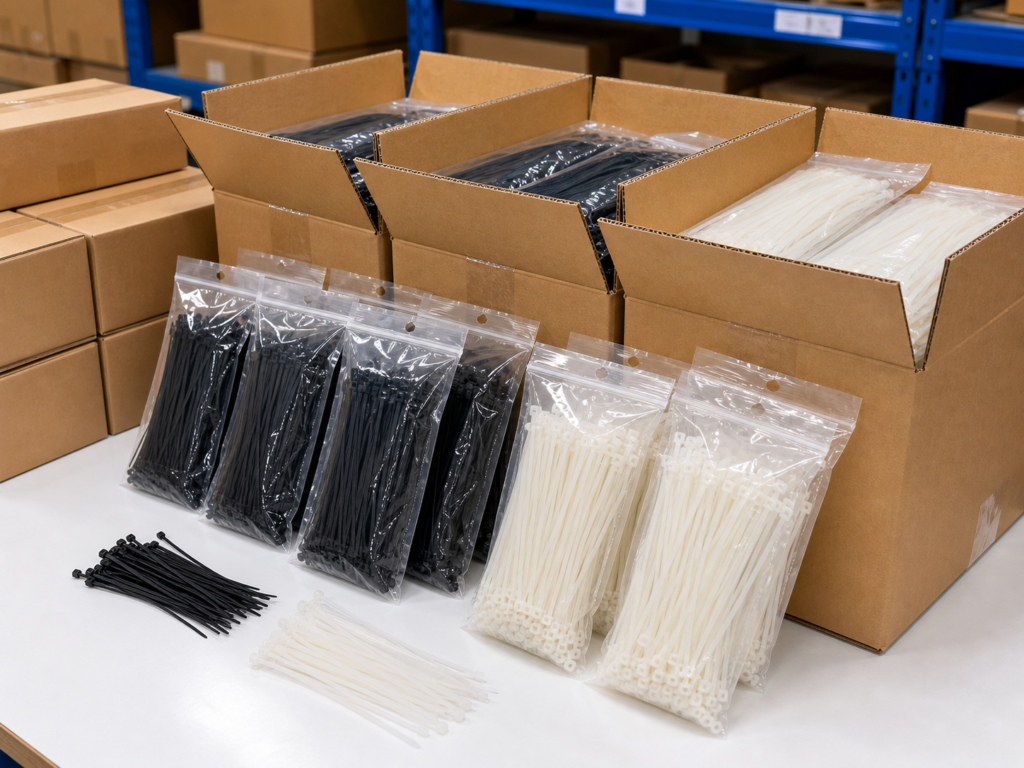

Wholesale & Distribution

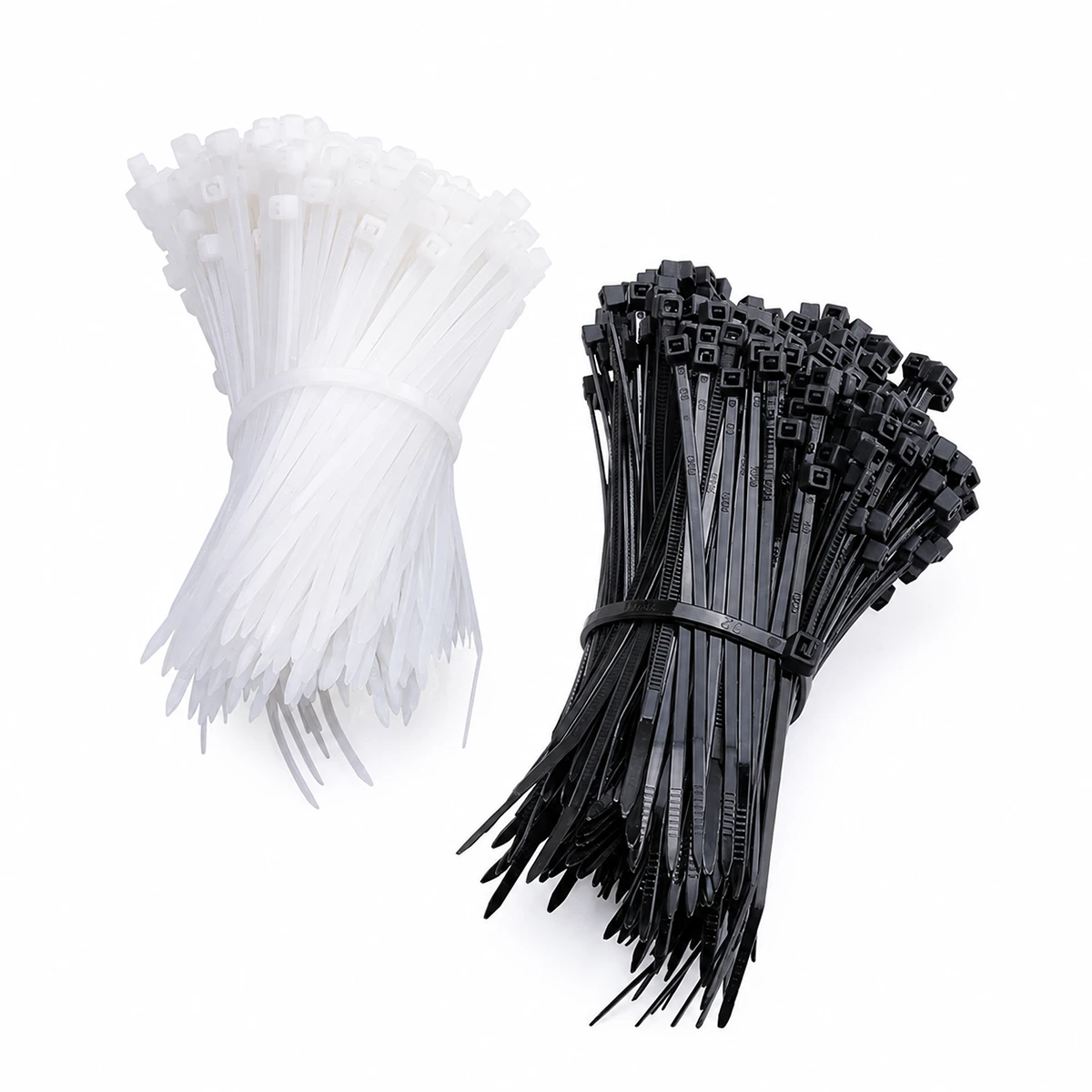

Available in bulk bags or smaller packs for distributors, OEM buyers, and retail supply.
Packaging & OEM
Haitai can support different packaging requirements including bulk packing, standard poly bags, retail bags, labels, carton marks, and selected private label requirements. Please share your target market, bag quantity, carton size, and annual purchasing plan for confirmation.
