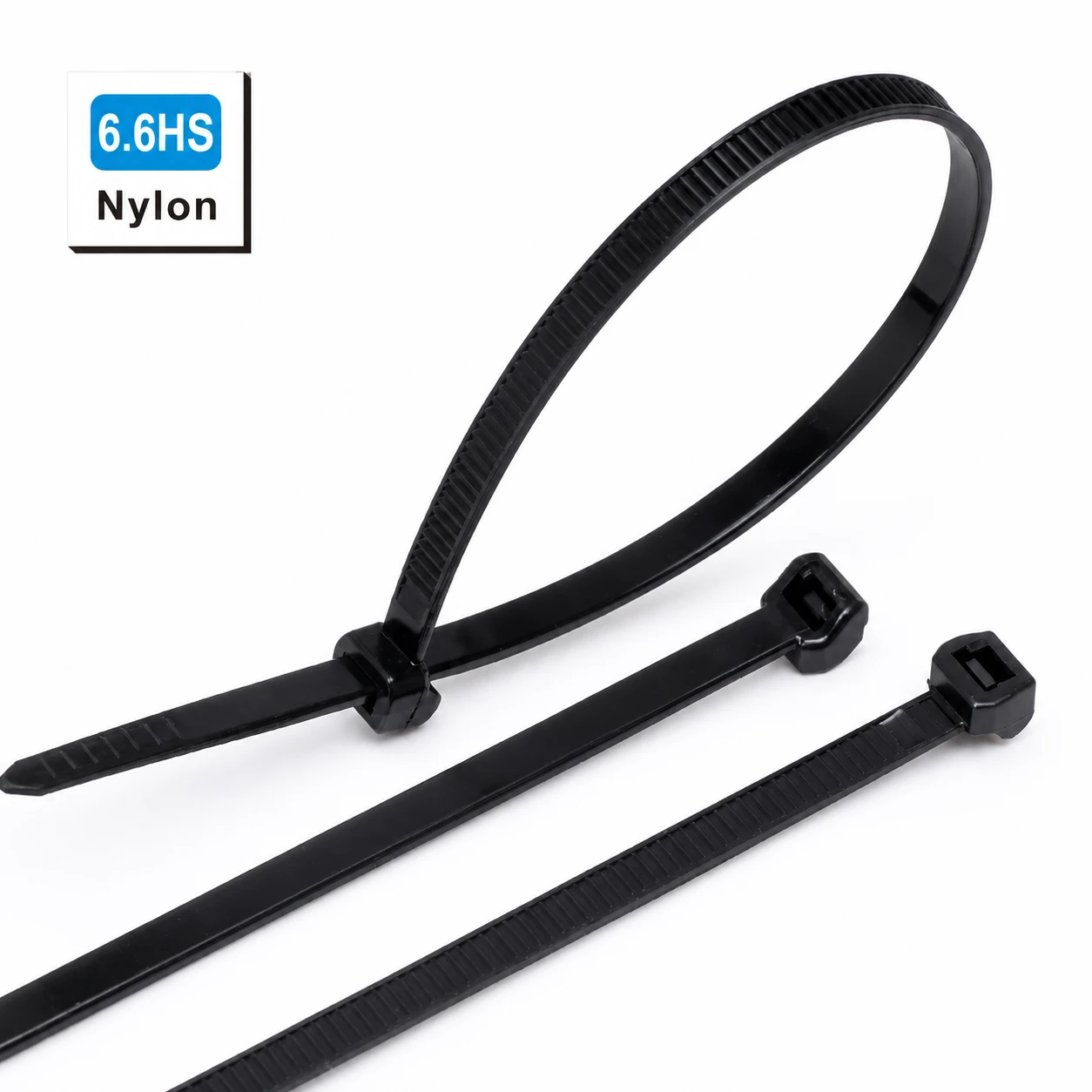

Haitai supplies reverse tooth cable ties with outside serrations and a smooth inner surface for wire harness bundling. The listed PA66HS version measures 4.6 × 200 mm, has a 50 mm maximum bundle diameter and a minimum tensile strength of 225 N, and is packed at 100 pcs/bag. Installation is specified from -20°C to +85°C; send the required quantity, color, service conditions and packaging for a factory quotation.
Material: PA66HS (heat-stabilized polyamide 6.6)
Installation temperature: -20°C to +85°C
Working temperature: -40°C to +105°C
Raw-material flammability: UL 94 HB (resin rating; request the applicable resin data sheet)
For short-term heat exposure, specify the peak temperature and exposure duration when requesting samples. Finished-product certification and application requirements should be confirmed for the selected model.
제품 상세 정보
Outside serrations leave the bundle-contact side of this PA66HS cable tie smooth. The listed 4.6 mm strap can be considered where contact with cable insulation matters; check the finished assembly, strap edges and installation tension on a sample.
PA66HS identifies a heat-stabilized polyamide 6.6 formulation, and Haitai’s listed working-temperature range for this version is -40°C to +105°C. The installation range is -20°C to +85°C; specify peak temperatures and exposure times when reviewing a wiring-harness application.
The 4.6 mm strap has outside serrations and a smooth bundle-contact face. Review insulation contact and tightening tension on the actual harness.
PA66HS is the listed heat-stabilized material. Working temperature: -40°C to +105°C; installation: -20°C to +85°C.
The listed 200 mm length accommodates a maximum 50 mm bundle diameter. Minimum tensile strength is 225 N, with 100 pcs/bag packaging.
사양 참조
The table describes the 4.6 × 200 mm PA66HS reverse-tooth configuration currently listed by Haitai. Confirm the required color, exact order reference and any application-specific test documents when requesting samples.
| Parameter | Specification |
|---|---|
| 스트랩 너비 | 4.6 mm |
| Overall length | 200 mm |
| Maximum bundle diameter | 50 mm |
| Minimum tensile strength | 225 N |
| 재료 | PA66HS, heat-stabilized polyamide 6.6 |
| Strap structure | Outside serrations with a smooth inner surface |
| Installation temperature | -20°C to +85°C |
| Working temperature | -40°C to +105°C |
| Standard packaging | 100개/가방 |
| Listed hand tool | FSZ-800Z; confirm tool suitability and tension setting |
Request the 4.6 × 200 mm reverse-tooth configuration and confirm the exact HTS model reference in the quotation. For other sizes, provide your width, length and bundle-diameter requirements in mm.
The 225 N tensile value is not a safe working-load rating or an installation-tool tension setting. Check the selected tool and finished bundle before production use.
애플리케이션
The listed 4.6 × 200 mm tie is intended for wire harness bundling in vehicle assemblies, electronics and control equipment where a smooth strap-contact surface is useful. Compare the measured bundle diameter with the 50 mm maximum and confirm temperature, vibration and fluid-exposure requirements for the actual installation.
For a broader selection checklist, see 자동차 배선용 케이블 타이 and the cable tie size chart. PA66HS identifies the material formulation; it does not by itself establish approval to an automotive customer’s specification.

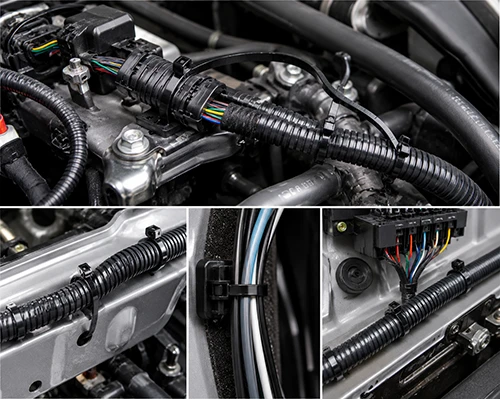

Automotive Wiring Harness
Evaluate the 4.6 × 200 mm PA66HS tie for the intended vehicle harness. Check insulation contact, routing clearance and the applicable temperature profile.

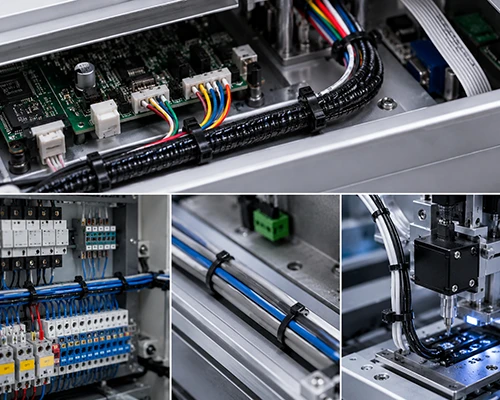

Electronics and Precision Equipment
Use the 50 mm maximum bundle diameter as an initial fit check for control-system wiring. Confirm the head clearance and tightening tension on a sample assembly.
This 4.6 mm reverse-tooth strap has serrations on the outside and a smooth inner face against the bundle. It offers a different contact surface from a conventional inside-serrated tie; check the strap, edges and locking head against your cable insulation.
The listed configuration is 4.6 × 200 mm with a maximum bundle diameter of 50 mm. Include the measured bundle diameter and required quantity in your enquiry, and confirm the exact HTS order reference before production.
The listed minimum tensile strength is 225 N. This is not a safe working-load rating, a lifting capacity or an installation-tool tension setting.
Installation is specified from -20°C to +85°C, while the listed working range for this PA66HS version is -40°C to +105°C. For peak-temperature exposure, provide the temperature and duration so that suitability can be reviewed for the selected model.
The 4.6 × 200 mm PA66HS version is an option to evaluate for automotive harness bundling. Confirm the customer specification, harness fit, temperature profile, vibration and fluid exposure; the material designation alone is not an automotive approval.
No: the PA66HS designation identifies heat-stabilized nylon, while outdoor UV performance must be specified separately for the selected 4.6 × 200 mm version. See our nylon 66 versus UV-resistant cable tie guide and request the relevant outdoor test information.
Haitai lists FSZ-800Z as the hand-tool reference for this configuration. Confirm compatibility and trial the tension setting on the actual harness; do not use the 225 N tensile value as a tightening setting.
The listed standard pack is 100 pcs/bag, and bulk or private-label requirements can be reviewed with the order. Send the 4.6 × 200 mm size, color, quantity, service conditions, destination and packaging requirements through the product enquiry form; learn more about the manufacturer on 하이타이 소개.
포장 및 OEM
해태는 벌크 포장, 표준 비닐봉투, 소매용 봉투, 라벨, 카톤 마크 및 선택한 자체 브랜드 요구사항을 포함한 다양한 포장 요구사항을 지원할 수 있습니다. 확인을 위해 목표 시장, 봉투 수량, 카톤 크기 및 연간 구매 계획을 공유해 주시기 바랍니다.
견적 요청
