Haitai manufactures PA66 metal pawl cable ties with a stainless steel locking insert in 27 listed models for wholesale, OEM and industrial supply. The range covers 2.4–10 mm widths, 100–699 mm lengths and published minimum tensile values from 80–550 N. Standard packaging is 100 pcs/bag, with installation specified from -20°C to +85°C; confirm the selected HTS model, pawl grade, color and test requirements in the purchase specification.
Body material: Polyamide 6.6 (PA66)
Locking insert: Stainless steel pawl; confirm the required grade in the quotation
Installation temperature: -20°C to +85°C
Operating temperature: -40°C to +85°C
Short-time temperature reference: up to +110°C; confirm exposure duration
Size range: 27 listed models, 2.4–10 mm wide and 100–699 mm long
Published tensile range: 80–550 N, model-specific
Packaging: 100 pcs/bag
Detalles del producto
Haitai metal pawl cable ties combine a PA66 strap with a stainless steel locking insert for continuously adjustable cable, hose and pipe bundling. The published range contains 27 HTS models in 2.4–10 mm widths, 100–699 mm lengths and model-specific tensile values from 80 to 550 N.

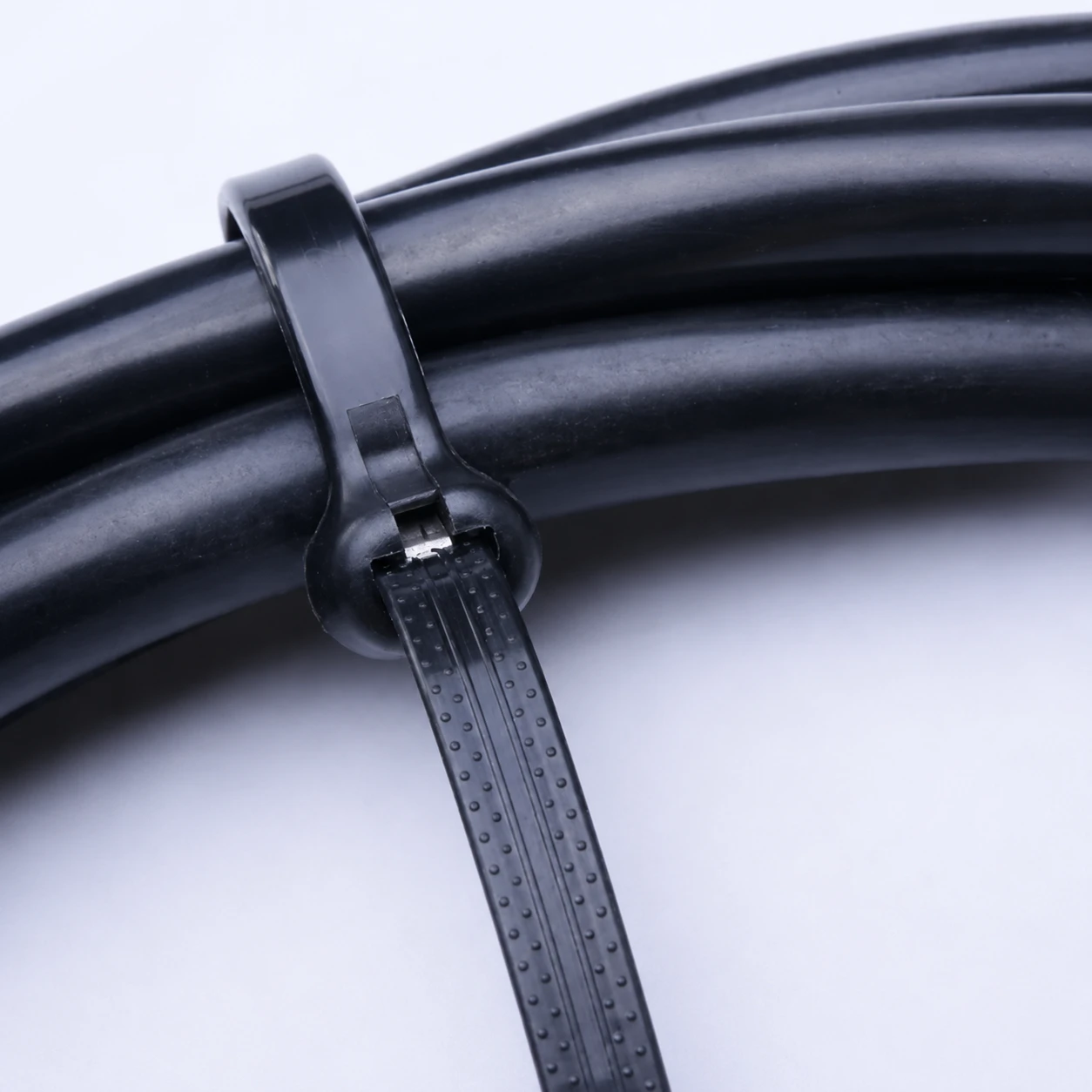

The stainless steel insert engages the strap inside the head, while the smooth strap body permits adjustment throughout the usable bundling range. Confirm the required pawl grade and sample performance for the selected HTS model.
Typical purchasing applications include electrical wiring, machinery, automotive harnesses, power equipment, hoses and pipe routing. For vibration, outdoor exposure or chemical contact, test the selected model under the actual installation conditions before bulk approval.

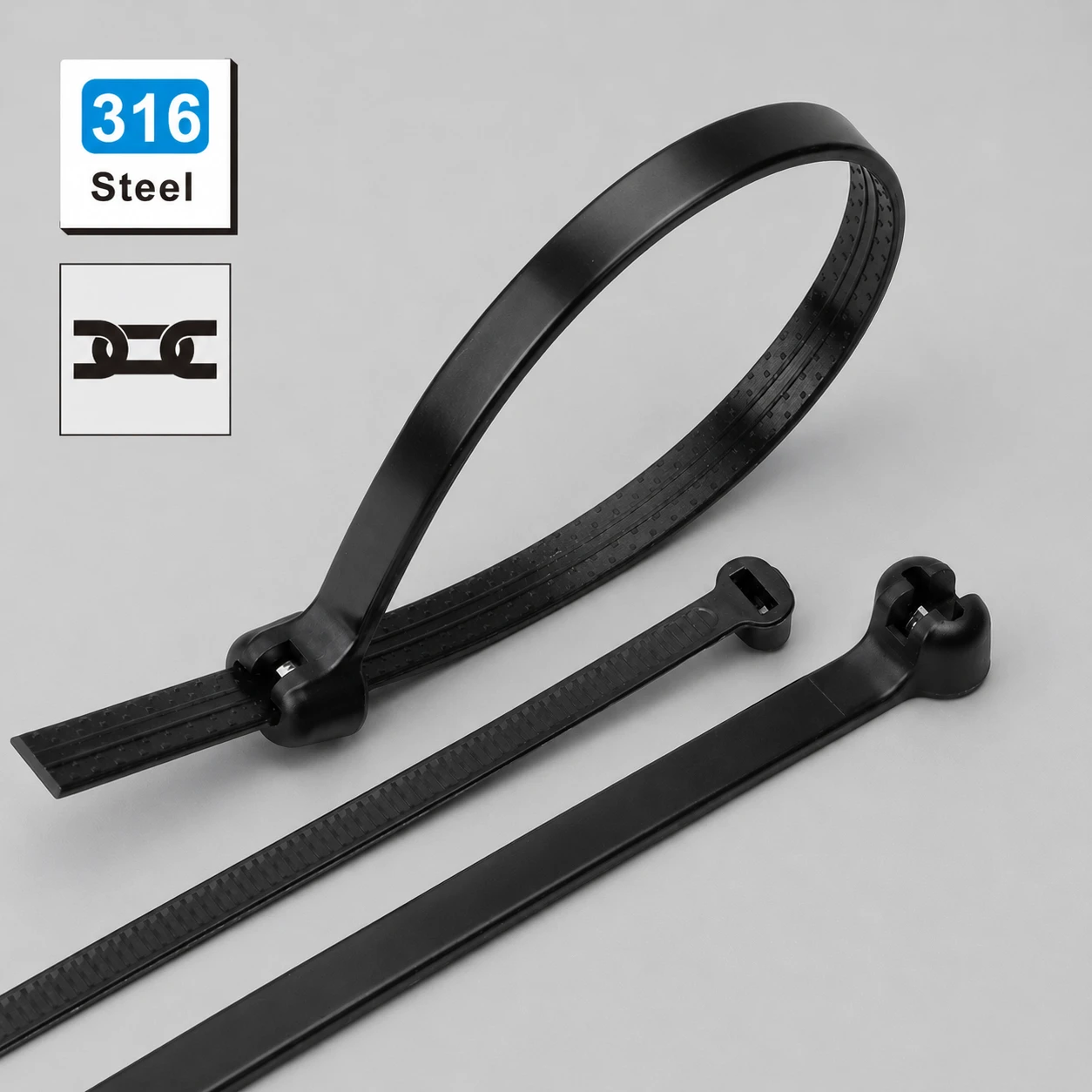

A stainless steel insert provides the locking interface inside the head. Confirm the pawl grade required for the selected order rather than assuming 304 or 316.
The strap body is PA66, with installation specified from -20°C to +85°C. Operating temperature is listed separately at -40°C to +85°C.
The catalogue contains 27 HTS models from 2.4 to 10 mm wide, supplied in standard 100 pcs/bag packaging.
Referencia de especificación
Select the HTS model by width, length, maximum bundle diameter and model-specific tensile strength. The corrected table covers 27 models, 100–699 mm lengths, 22–203 mm listed maximum bundle diameters and 80–550 N published tensile values; all listed models use 100 pcs/bag as the standard reference.
| Modelo | Width mm/in | Length mm/in | Max. bundle mm/in | Min. tensile | Paquete | Material |
|---|---|---|---|---|---|---|
| HTS-2.4-102 | 2.4 / 0.094 | 102 / 4.02 | 23 / 0.91 | 80 N / 18 lbf | 100 pcs/bag | PA66 |
| HTS-2.4-201 | 2.4 / 0.094 | 201 / 7.91 | 51 / 2.01 | 80 N / 18 lbf | 100 pcs/bag | PA66 |
| HTS-3-100 | 3.0 / 0.118 | 100 / 3.94 | 22 / 0.87 | 80 N / 18 lbf | 100 pcs/bag | PA66 |
| HTS-3.6-155 | 3.6 / 0.142 | 155 / 6.10 | 35 / 1.38 | 180 N / 40 lbf | 100 pcs/bag | PA66 |
| HTS-3.6-284 | 3.6 / 0.142 | 284 / 11.18 | 80 / 3.15 | 180 N / 40 lbf | 100 pcs/bag | PA66 |
| HTS-3.6-368 | 3.6 / 0.142 | 368 / 14.49 | 104 / 4.09 | 180 N / 40 lbf | 100 pcs/bag | PA66 |
| HTS-3.8-200 | 3.8 / 0.150 | 200 / 7.87 | 50 / 1.97 | 180 N / 40 lbf | 100 pcs/bag | PA66 |
| HTS-4.8-186 | 4.8 / 0.189 | 186 / 7.32 | 45 / 1.77 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-4.8-250 | 4.8 / 0.189 | 250 / 9.84 | 65 / 2.56 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-4.8-295 | 4.8 / 0.189 | 295 / 11.61 | 79 / 3.11 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-4.8-361 | 4.8 / 0.189 | 361 / 14.21 | 100 / 3.94 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-4.8-376 | 4.8 / 0.189 | 376 / 14.80 | 107 / 4.21 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-6-200 | 6.0 / 0.236 | 200 / 7.87 | 50 / 1.97 | 220 N / 50 lbf | 100 pcs/bag | PA66 |
| HTS-7-221 | 7.0 / 0.276 | 221 / 8.70 | 51 / 2.01 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-7-300 | 7.0 / 0.276 | 300 / 11.81 | 80 / 3.15 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-7-378 | 7.0 / 0.276 | 378 / 14.88 | 102 / 4.02 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-7-460 | 7.0 / 0.276 | 460 / 18.11 | 127 / 5.00 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-7-538 | 7.0 / 0.276 | 538 / 21.18 | 152 / 5.98 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-7-699 | 7.0 / 0.276 | 699 / 27.52 | 203 / 7.99 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-8-240 | 8.0 / 0.315 | 240 / 9.45 | 57 / 2.24 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-8-300 | 8.0 / 0.315 | 300 / 11.81 | 76 / 2.99 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-8-350 | 8.0 / 0.315 | 350 / 13.78 | 92 / 3.62 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-8-400 | 8.0 / 0.315 | 400 / 15.75 | 108 / 4.25 | 498 N / 112 lbf | 100 pcs/bag | PA66 |
| HTS-10-300 | 10.0 / 0.394 | 300 / 11.81 | 77 / 3.03 | 550 N / 124 lbf | 100 pcs/bag | PA66 |
| HTS-10-350 | 10.0 / 0.394 | 350 / 13.78 | 97 / 3.82 | 550 N / 124 lbf | 100 pcs/bag | PA66 |
| HTS-10-400 | 10.0 / 0.394 | 400 / 15.75 | 109 / 4.29 | 550 N / 124 lbf | 100 pcs/bag | PA66 |
| HTS-10-450 | 10.0 / 0.394 | 450 / 17.72 | 124 / 4.88 | 550 N / 124 lbf | 100 pcs/bag | PA66 |
Table note: Tensile strength is a model-specific product value, not a safe working-load or lifting rating. Confirm the selected model, pawl grade, sample and acceptance criteria before bulk production.
It combines a PA66 strap body with a stainless steel locking insert inside the head. The insert engages the strap to provide continuously adjustable fastening within the model’s usable bundle range.
The table contains 27 HTS models from 2.4 to 10 mm wide and 100 to 699 mm long. Listed maximum bundle diameters range from 22 to 203 mm.
Published minimum tensile values range from 80 to 550 N depending on the model. These figures are not lifting ratings or safe working loads.
The listed installation range is -20°C to +85°C. The -40°C operating minimum must not be treated as the minimum installation temperature.
Do not assume a universal vibration-proof rating from the metal insert alone. For vibration-prone equipment, validate the selected HTS model on the actual assembly and define the test conditions in the purchase specification.
Black color alone does not prove UV resistance. Specify a UV-stabilized black formulation and request evidence applicable to the selected model and exposure conditions.
All 27 listed models use 100 pcs/bag as the standard reference. OEM labels, barcodes, retail bags and carton marks can be confirmed separately.
Send the HTS model or width and length, bundle diameter, tensile requirement, pawl grade, color, quantity, environment, documents, packaging and destination.
Aplicaciones
Metal pawl cable ties are used for industrial cable bundles, equipment wiring, automotive harnesses, hoses and pipe routing where buyers need a smooth strap and stainless steel locking insert. The 27-model range lets buyers match width, length, maximum bundle diameter and tensile strength to the assembly.
Confirm clearance, bundle diameter, edge contact, temperature, vibration profile and the required tensile acceptance method. Use a production-representative sample rather than assuming every 80–550 N model suits the same environment.
Specify the actual sunlight, moisture, oil, solvent, acid and cleaning-agent conditions. UV resistance, chemical resistance and service life require model- and formulation-specific evidence.
Industrial Cable Bundling
Use the specified HTS model for cable bundles and equipment wiring only after confirming bundle diameter and the model-specific 80–550 N tensile value. Define installation-tool tension when repeatable assembly is required.

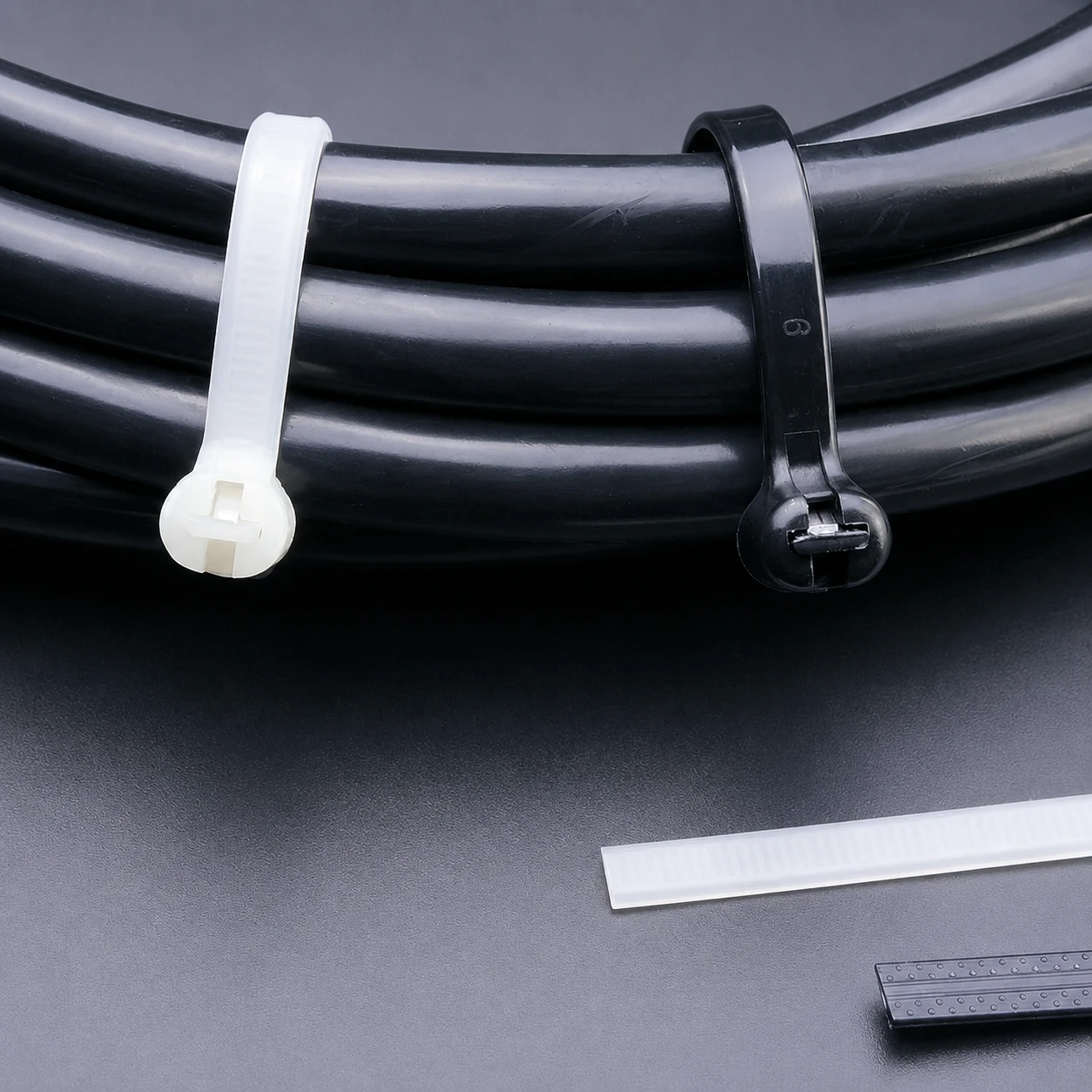

Pipe and Hose Fixing
For hoses and pipe routing, select by the corrected 22–203 mm maximum bundle-diameter range and leave practical installation allowance. Validate temperature, chemicals, vibration and surface contact on the actual assembly.
Empaquetado y OEM
Haitai puede ofrecer soporte para diferentes requisitos de empaque, incluyendo empaque a granel, bolsas de polietileno estándar, bolsas para venta minorista, etiquetas, marcas de cartón y requisitos de marca privada seleccionados. Por favor, comparta su mercado objetivo, cantidad de bolsas, tamaño de cartón y plan de compra anual para confirmación.
